• Bush Type Flexible Couplings

The function of a flexible coupling is to transmit torque from one shaft to another in cases where limited misalignment may occur and also to absorb shock loads.

The Fenner Bush Type Flexible Coupling of the cushioned drive type, transmits the torque through high tensile steel bolts to the machine input shaft. Highly developed rubber compounds are used in bushes to absorb shock loads, torsional vibrations and slight misalignments.

Simple and compact in construction, the Fenner Coupling is capable of transmitting high torques at maximum speeds. The flanges are manufactured with cast iron, grade 20 of IS. 210. This type of coupling permits drive in either direction and requires neither lubrication nor adjustment after fitting.The flexible bushes remain unaffected by water. dust and atmospheric conditions.

Two series are now available in Bush Type Flexible Couplings: a. FBC series and b. EFBC series

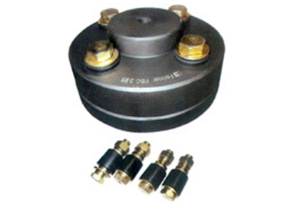

• FBC Series Bush Type Flexible Coupling

• Simple & compact in construction
• Transmits torque through high tensile steel bolts
• 26 sizes-power rating from 0.81 kW to 2069 kW at 100 rpm

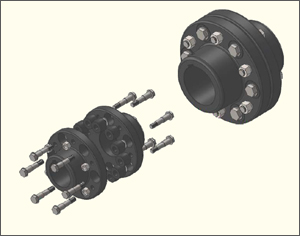

• EF-BC Bush Type Flexible Coupling

The EF-BC Bush Type Flexible Coupling of the cushioned drive type transmits the torque through high tensile steel bolts between Driving & Driven Shafts. Polymer compounds are used to absorb shock loads, torsional vibrations and misalignments. Simple and compact in construction, the coupling is capable of transmitting high torque at maximum speeds. The flanges are manufactured with Cast Iron grade 20 as per IS 210 for Light series & for Heavy series both in Cast Iron & Cast Steel. This type of coupling permits drive in either direction and requires neither lubrication nor adjustment after fitting. The flexible barrel bushes are designed for long lasting performance against weathering conditions.
Flanges are bored to suit requirements and are key wayed to British Standard Specification, unless otherwise stated. They can also be supplied with the listed minimum bore to permit machining on site. Power requirements for the standard couplings range from 1.0 kW to 13613 kW at 100 rpm. The size ranges from EFBC 00095 to EFBC 02000.
