Power Transmission Accessories

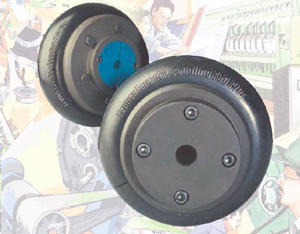

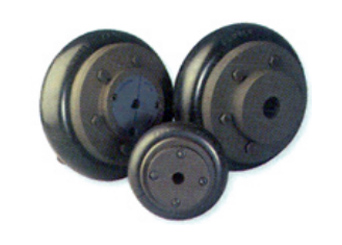

• Fenaflex Tyre Couplings
• Highly elastic, Backlash free, Absorb shocks and Dampen Vibrations
• Choice of Tyres-Standard, Neoprene or Fire Resistant Antistatics (FRAS)
• 17 sizes-power ratings 0.22 kW to 132 kW at 100 rpm
Fenner Tyre couplings provide all the desirable features of an ideal flexible coupling, including Taper-Lack® fixing. The Fenner Tyre coupling is a 'torsionally elastic' coupling offering versatility to designers and engineers with a choice of flange combinations to suit most applications.
The flanges are available in either F or H version Taper-Lock. fitting or bored to size B.
With the addition of a spacer flange, the coupling can be used to accommodate standard distance between shaft ends and facilitate pump maintenance.
Fenner Tyre couplings can accommodate simultaneous maximum misalignment in all planes without imposing undue loads on adjacent bearings and the excellent shock-absorbing properties of the flexible tyre reduce vibrations and torsional oscillations.
Fenner tyres are available in natural rubber compounds for use in ambient temperatures between -50°C to +50°C. rubber compounds are available for use in adverse operating conditions e.g. oil or grease contaminations and can be used in temperatures of - 15°C to 70°C.
F.R.A.S. tyres are available for use when fire-resistance and antistatic (F.R.A.S.) propedies are required.
Torque - Bore Range
The range includes couplingswith torque capacity upto 12606 Nm. and bore diameters upto 190 mm.
