• Motors are available from frame sizes 56 to 355L
• 2, 4, 6 & 8 Pole Designs
• Rating : 0.093 to 315.0 kW
• Mounting Positions : B3, B5, B14 & combinations
• Protection : IP55
• Enclosure : TEFC
• HMM Motors are designed for 50OC Ambient Temperature
Terminal Box Data :
Standard location of the terminal box is on top. However for frame sizes 56 to 355, the terminal box on right or left side can be provided on request. The terminal box can be rotated in steps of 900 in each position.
The degree of protection as classified in IS 4691. It is denoted by two digits. The first digit denotes protection against solid bodies or particles and the second digit denotes protection against liquid. All our standard TEFL motor have degree of protection IP55, unless otherwise specified.

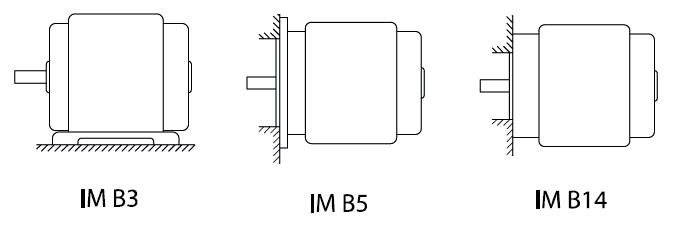

Mounting Positions : B3, B5, B14 & combinations
